AVMATRIX Shark H4 PLUS 4-Channel HDMI Video Switcher

Rs. 64,900.00
This product is Out of stock
Key Features:
  • Compact 4-Channel Video Switcher
  • Folding 10.1" IPS LCD Display
  • 4 x HDMI Inputs, USB-A Recording Output
  • 1 x HDMI Multiview & 2 x HDMI PGM Out
  • 1 x USB-C Out for Capture & Streaming
  • Supports up to 1080p60 Video In/Out
  • 1 x LAN for Control Input & Streaming
  • SD Card Slot, 2 x Mic Inputs
  • T-Bar, Auto & Cut Transitions
  • Audio Mixing, Multiview Output

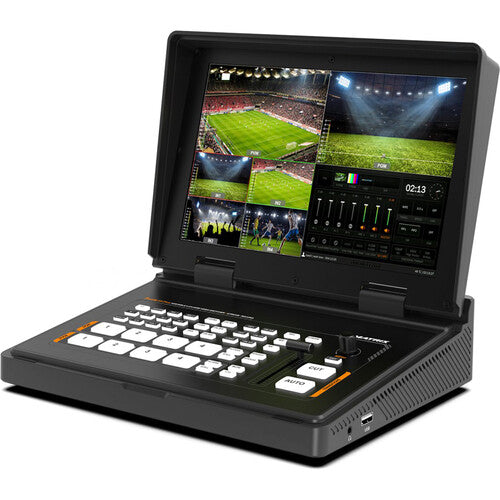

Switch up to four HDMI video inputs while monitoring the program feed with the portable Shark H4 PLUS 4-Channel HDMI Video Switcher with 10.1" IPS Display from AVMATRIX. This model features a folding design with a 10.1" IPS LCD screen on the lid. Use the USB-C output together with your computer for capture and live streaming using your computer, and record directly from the unit using the USB-A output or SD card slot.

This compact switcher supports up to 1080p60 video input and output with embedded audio, and it offers audio mixing using the two analog stereo 3.5mm mic/line inputs and embedded audio. Switcher control options include push buttons, a T-bar, and IP control via the LAN port.

USB Capture & Streaming
Built-in USB-C port can be used to connect the switcher to a computer for USB capture and streaming using software like OBS, Skype, Teams, VLC, Zoom, or vMix.

10.1" Full HD IPS Display
The switcher features a 10.1" 1920 x 1080 IPS LCD display that provides multiview, preview, program, audio meters, time clock, and menu configuration.

USB and SD Card Recording
Record your program to an SSD or flash drive in MP4 format using the USB-A recording output, or utilize an optional SD card for in the built-in SD card recording slot.

Live Stream via Ethernet
The LAN port supports IP streaming via RTMP or SRT protocols, allowing you to easily live stream to popular platforms such as YouTube, Skype, Facebook, Twitch, and more.

Software Remote Control
Offers easy control of all settings and operations through the control software, including transitions, audio configurations, media management, and more.

Multiple Interfaces
Multiple interfaces include four HDMI inputs, Program outputs, multiview output, audio inputs, streaming, and recording ports. The outputs can all be configured to pass input, preview, program, clean program, and color bars.

Other Features
  • Enhanced chroma key
  • Professional audio mixer with embedded and analog audio inputs
  • Import up to 39 default patterns, 16 imported images, 16 captured images, and two color generators via USB
  • PiP, PoP, logo overlay, transition effects
Applications
  • Broadcast
  • Education
  • Conference
  • Social media/vlogging
  • Live sports
  • House of worship
  • Live events

Technical Specifications:

Available M/E Layers

2 M/E

Effect Types

1x Luma Key

Downstream Keys

1x Chroma

1x Luma

Generators

1x Pattern

2x Color

Audio Mixing

2-Channel Mixing

Switching Type

Pushbutton, Software, T-Bar

Processing Resolution

1080p at 23.98/24/25/29.97/30/50/59.94/60

Color Processing

RGB

YCbCr

Number of Video Input Sources

4

Video Inputs

4x HDMI Female

Input Video Format

HDMI

1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

1080i at 50/59.94/60 fps

Audio Inputs

2x 1/8" / 3.5 mm TRS Stereo Analog Female

Input Audio Format

Analog

Embedded Audio Input

HDMI: 2-Channel

Video Output Channels

5

Video Outputs

2x HDMI Female (Program)

1x HDMI Female (Monitor)

1x USB-C (USB Video) Female (Program)

1x USB-A (USB Video) Female (Program)

Output Video Format

HDMI

1080p at 24/25/30/50/60 fps

1080i at 50/60 fps

USB-C

1080p at 60 fps

Audio Outputs

1x 1/8" / 3.5 mm TRS Stereo Analog Female (Loop Output)

Embedded Audio Output

HDMI

USB-C

Multiview Output

4-Way Multiview via HDMI

Monitor Output

1x HDMI

Other I/O

1x RJ45 LAN Input

1x DE-15/DB-15 Tally Input/Output

1x USB-A Input

HDCP Support

No

IP Video

1920 x 1080 Encoding

Transport Protocols

RTMP, RTMPS, SRT

Simultaneous Streams

1 Streams

Recording Media

1x SD (Unspecified Type)

Display Size

10.1"

Screen Resolution

1920 x 1080

Processor

Not Specified by Manufacturer

Wi-Fi

Yes

Bluetooth

Yes

Power I/O

1x Barrel (12 VDC at 1.7 A) Input

Power Consumption

Device: 20.4 W

Operating Temperature

-4 to 122°F / -20 to 50°C



In the Box:

  • AVMATRIX Shark H4 PLUS 4-Channel HDMI Video Switcher with 10.1" IPS Display
  • 12V Power Supply
  • USB-A to USB-C Cable
  • Tally Connector
  • Limited 3-Year Manufacturer Warranty
