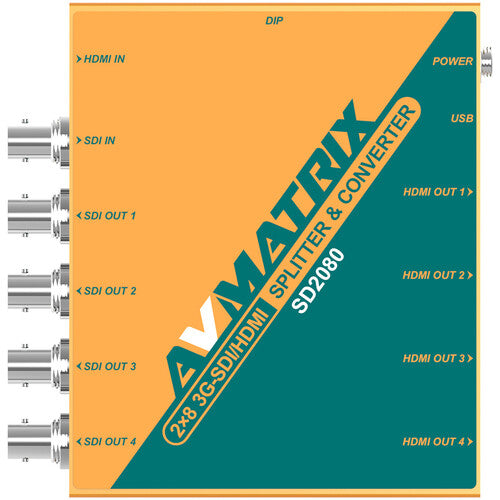

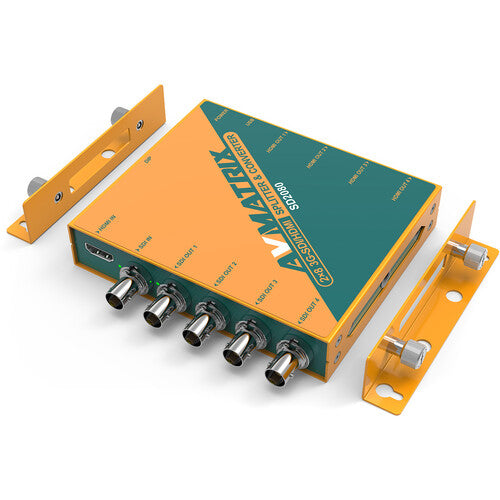

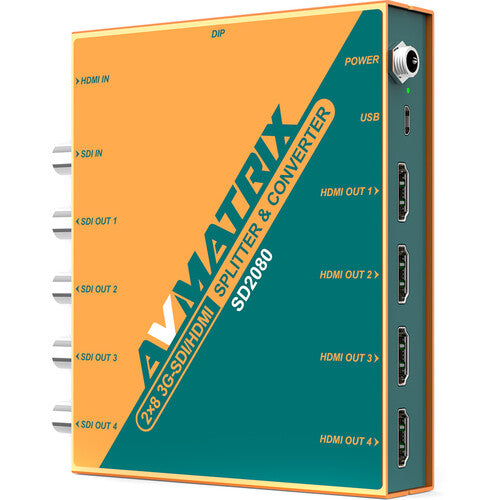

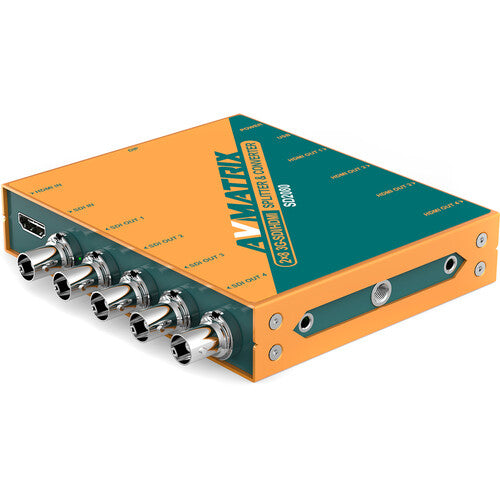

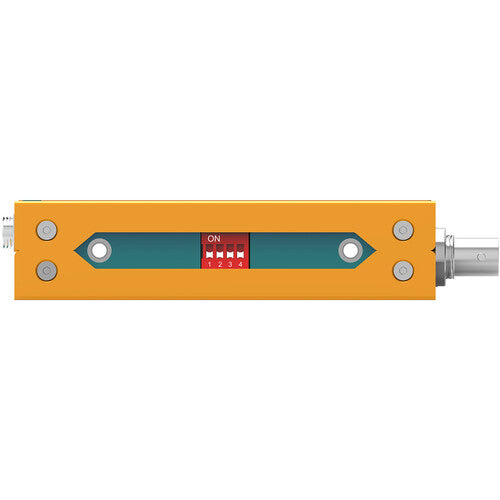

The 2 x 8 SDI/HDMI Splitter and Converter from Lilliput offers 2 x 8 distribution as well as SDI/HDMI conversion. It features HDMI and 3G-SDI autodetecting inputs, four 3G-SDI outputs, and four HDMI outputs. All the connections support up to 1080p60 signals. The SDI ports support cable equalization and reclocking. Input signals can easily be switched via dip switches on the side. Two mounting brackets are included for mounting the splitter in various ways.
Technical Specifications:
Input
1 x BNC (3G-SDI)
1 x HDMI
Output

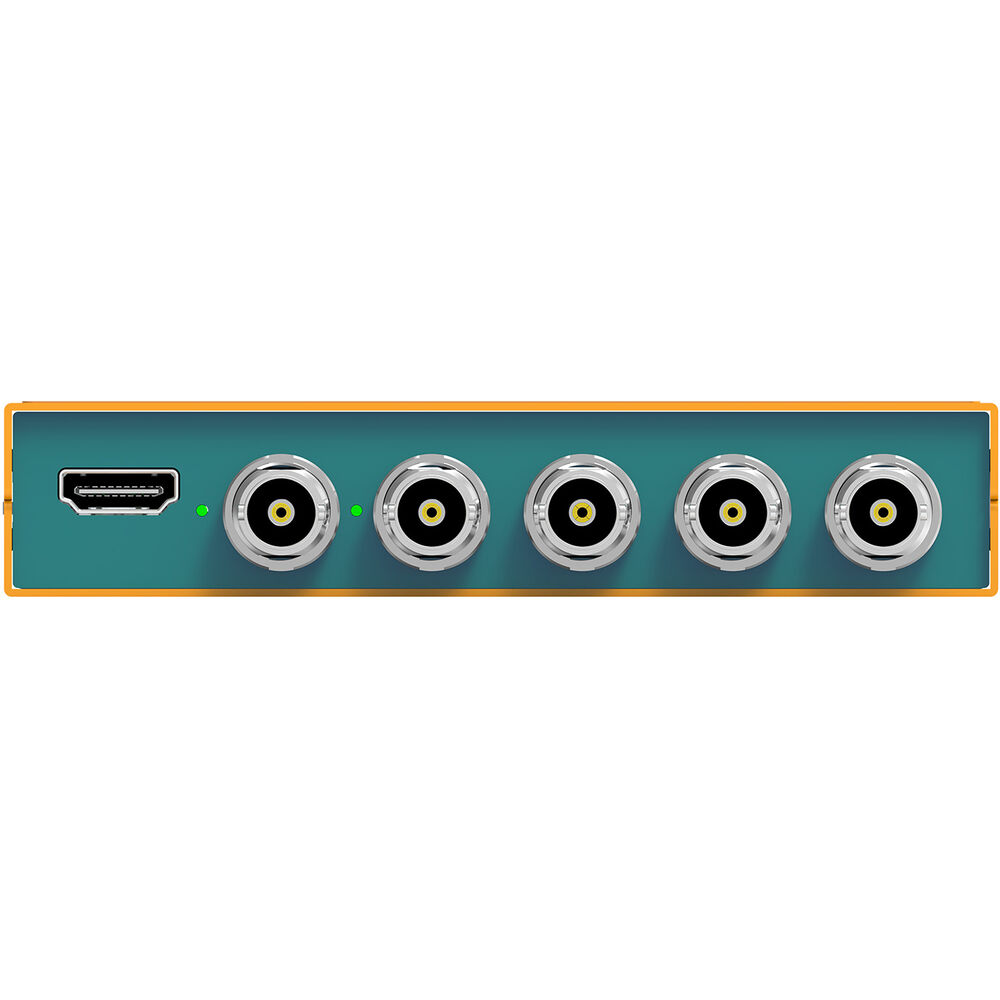

4 x BNC (3G-SDI)

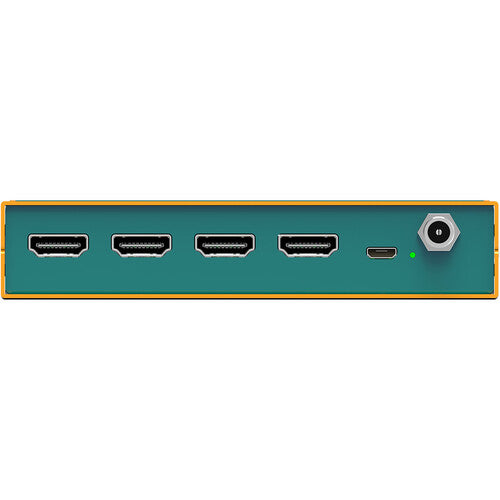

4 x HDMI
Other I/O
1 x USB Micro-B
Video Standard Compliance
SMPTE 259M/292M/424M
Reclocking
Yes
HDR Compatibility
No
HDCP Support
EDID Support
Video Format
SDI Input (4:2:2 YUV)
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
1080i: 50/59.94/60 fps
720p: 25/29.97/30/50/59.94/60 fps
NTSC
PAL
SDI Output (4:2:2 YUV)
720p: 50/59.94/60 fps
HDMI
Power Connector
1 x Barrel (12 VDC) Input
Power Consumption
(6.6 W)
ESD Protection
Operating Temperature
12 to 92°F / -20 to 60°C
Storage Temperature
-22 to 158°F / -30 to 70°C
Operating Humidity
0 to 90%
