Kiloview D260 HD IP to SDI/HDMI Video Decoder

Kiloview D260 HD IP to SDI/HDMI Video Decoder

Name: Kiloview D260 HD IP to SDI/HDMI Video Decoder
Brand: Kiloview
SKU: D260
Price: 37905 INR
Availability: InStock

Rs. 37,905.00

- +

Kiloview ⁄ Kiloview D260 HD IP to SDI/HDMI Video Decoder

Key Features:

Decode up to H.264/H.265 IP Video
1 x 3G-SDI & 2 x HDMI 2.0 Outputs
Dual Gigabit Ethernet, Up to 1080p60 Out
4-Channel Decoding, 16 x Preview Streams
Built-In LCD Screen
Independent, Multichannel, Replication
3.5mm Line Out, Audio On/Off
USB-A for Intercom/USB-C for SSD Storage
Customizable Grids, Frames & PIP

Designed for professional video decoding, the D260 HD IP to SDI/HDMI Video Decoder from Kiloview supports up to 1080p60 video input and output and can simultaneously decode up to four channels for output and it can preview up to 16 video channels.

It features one 3G-SDI and two HDMI outputs, supports multiple audio formats, and offers multiple display options and Picture-in-Picture setups. The D260 has an integrated LCD display and it supports H.264/H.265 decoding formats as well as NDI, NDI|HX 2/3, SRT, RTMP, RTMPS, HLS, TS over UDP, RTP, and RTSP streaming protocols.

Decoding Performance with H.265/H.264

The D260 supports decoding in H.265 and H.264 formats and supports up to four simultaneous outputs in 1080p60 resolution. All four video outputs can be customized to output to a single display or using PIP (Picture-in-Picture).

More Protocols Supported

For all IP-based video transmission process, the D260 supports the latest NDI and streaming protocol technology, including NDI|HX3 (beta), NDI|HX2, SRT, RTMP/RTMPS, HLS, TS over UDP, and RTP/RTSP via its dual Gigabit Ethernet ports.

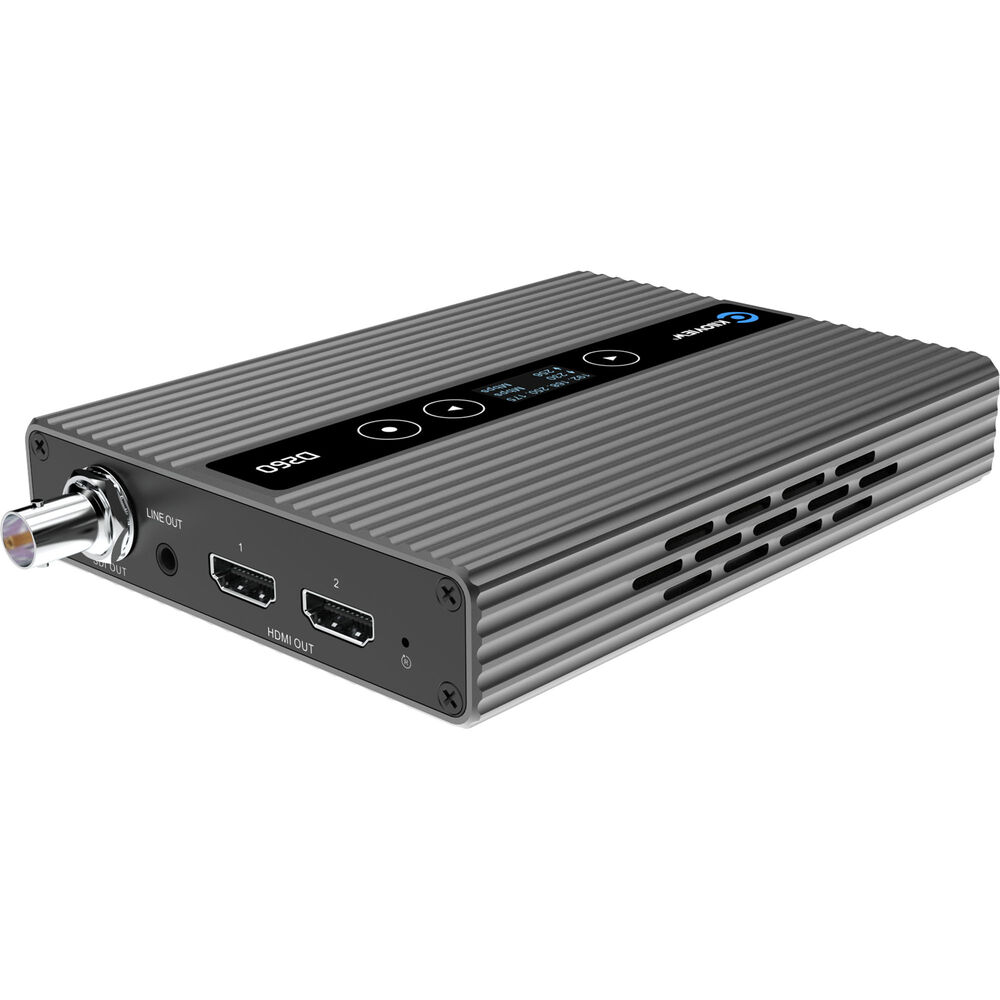

Extended Output Interfaces

As an upgraded version of the DC230, the D260 adds more interfaces and is equipped with two HDMI 2.0 outputs and one 3G-SDI output. It's capable for outputting in three ways: Independently, combining multi-channel video flows, or replicating one single signal to stream simultaneously.

16 Preview + 4 Output

The D260 supports "preview + output" mode, where you can preview up to 16 video streams and select four of them to display on the screen for output simultaneously. This feature can also be used for monitoring (PVW/PGM).

Powerful Audio Decoding

With a long list of audio formats supported including AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM, the D260 is also capable of switching audio On/Off, audio mixing, and applying audio gain in real-time to output alternatively through its HDMI ports, SDI port, and 3.5mm line out port.

Custom Layouts

You can customize a multi-output display, including custom grids and PIP (Picture-in-Picture) with a simple drag-and-drop process. There are numerous ways to customize the display including showing bit-rate and resolution.

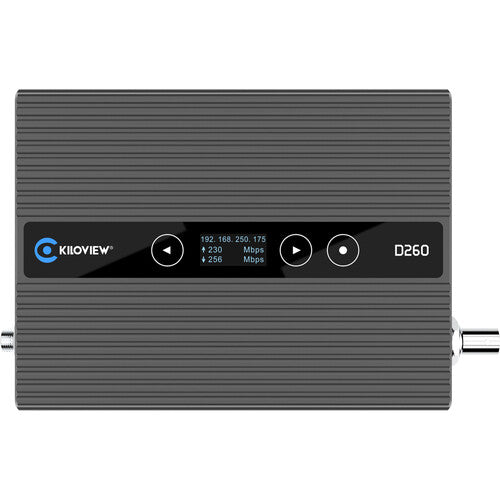

Display and Touch Buttons

The D260 is equipped with an LCD screen and touch buttons for ease of use. With the built-in LCD screen, users can easily check transmission status in real-time.

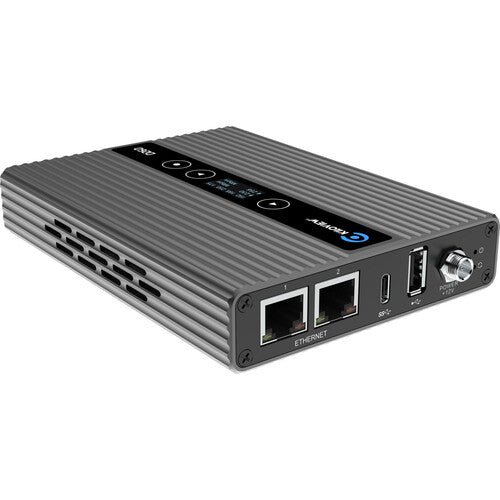

USB Expansion Ports

Expand the functionality of your decoder with PTZ and intercom connectivity using the USB-C and USB-A connectors.
